Brewers and homeowners alike know that water quality matters. The mineral content, pressure and contaminants in your water can make or break a perfect espresso shot or shorten the life of your equipment. This guide dives deep into the main components of a comprehensive water treatment setup – from regulating incoming pressure to using sediment, carbon, softening and reverse‑osmosis filtration – and explains how devices like blend valves and TDS meters help you fine‑tune the final result. At the end of each section you’ll find a plain‑language summary that distills the technical details into simple, actionable advice.
Incoming Water Pressure
Technical overview
Municipal water arrives at your home or café under pressure, often between 60 and 80 psi. In some cases the pressure can exceed 100 psi. High pressure is necessary for distribution through miles of pipes, but when it enters an appliance or filtration system it can cause problems: seals wear out faster, hoses burst and filter housings may crack. Plumbing codes therefore require pressure‑regulating valves if the supply pressure exceeds 80 psi. The U.S. Environmental Protection Agency’s WaterSense program recommends maintaining an incoming pressure between 45 and 60 psi. In homes served by wells, a pressure tank set around 60 psi is suggested to protect the pump and conserve energy.
Low pressure can be equally problematic. If pressure drops below 50 psi, faucets and espresso machines feel weak and automatic valves may not function correctly. Factors such as undersized pipes, clogged screens or sediment‑laden filters can reduce pressure. For equipment like espresso machines, which depend on stable pressure to deliver precise brew parameters, monitoring and adjusting incoming pressure is critical.
Simple summary
Your water needs to arrive at a “just right” pressure. Too high and you risk damaging pipes and equipment; too low and taps and espresso machines won’t work properly. Aim for around 45–60 psi. If your pressure is above 80 psi, install a pressure‑reducing valve. If it’s too low, check for clogged filters or call your water provider.
Sediment Filters
Technical overview
Sediment filters are the first line of defence in a multi‑stage filtration system. They remove suspended particles such as sand, silt, clay and rust flakes. These particles, though small, can foul downstream components like carbon filters and membranes and can cause scale or clogging in espresso machines. Sediment filters are rated by pore size; a filter labeled “10 micron” will trap particles 10 µm or larger. Two common ratings describe their performance: nominal filters remove about 85 % of particles at the stated size, while absolute filters remove 99.9 %. Sediment cartridges are typically made from wound string, spun polypropylene or pleated paper and are inexpensive to replace.
It is important to note that sediment filters do not remove dissolved contaminants such as nitrates, heavy metals or bacteria. They serve as pretreatment for activated carbon, water softening or reverse‑osmosis systems. For extremely fine particulates, microfiltration or ultrafiltration may be needed.
Simple summary
Sediment filters catch the grit in your water. Think of them as a strainer that keeps out sand and rust so your more expensive filters don’t get clogged. They have tiny holes measured in microns; the smaller the number, the finer the particles they remove. Replace them regularly, and remember they don’t remove chemicals or microbes – just dirt.

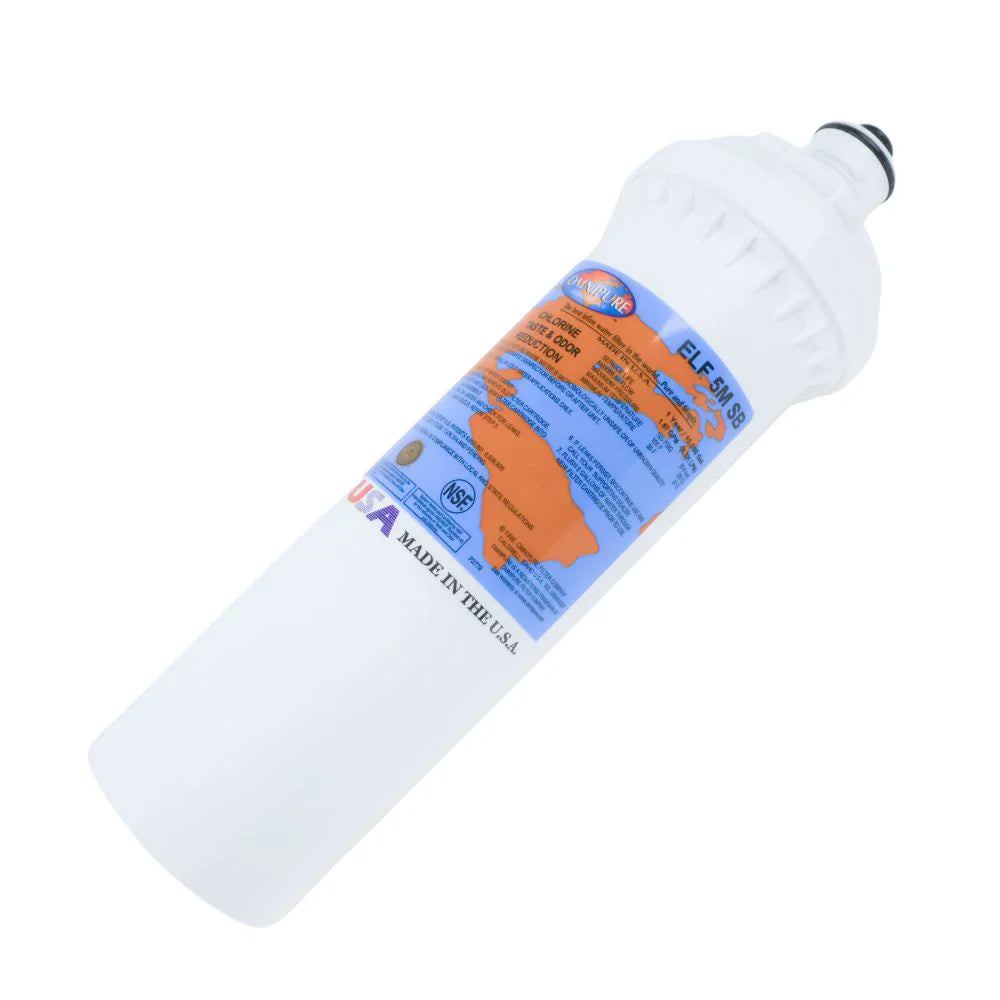

Carbon Filters (Activated Carbon)
Technical overview
Activated carbon filters, often made from coconut shell or coal, are used to remove dissolved organic chemicals, chlorine, chloramine and compounds that cause unpleasant taste or odor. Granular activated carbon (GAC) and carbon block filters adsorb contaminants onto their porous surfaces; the effectiveness depends on the surface area, pore size and contact time. When water flows too quickly or the carbon bed is undersized, contaminants may pass through. Some carbon filters can also reduce lead and radon, but they generally do not remove minerals, nitrates, fluoride or microbial pathogens. Because carbon has a finite adsorption capacity, cartridges must be replaced when saturated; otherwise, they can release trapped contaminants back into the water.
Carbon filters come in two main installations:
- Point‑of‑entry systems treat all water entering a home and are sized to handle larger flow rates. These remove chlorine and organic chemicals throughout the building but require more frequent replacement of larger filters.
- Point‑of‑use filters sit under a sink or in a countertop pitcher to treat water for drinking and cooking. Because they handle less water, they can be smaller and more affordable.
Simple summary
Activated carbon acts like a sponge for chemicals that make water taste or smell bad. It’s great for removing chlorine, some pesticides and organic compounds but doesn’t pull out minerals or germs. Carbon filters need to be sized right for your water use and replaced on schedule, or they stop working.
Water Softener Filters (Ion Exchange)
Technical overview
Hard water contains high levels of calcium and magnesium. While these minerals are not harmful to drink, they cause scale buildup in pipes, heaters and espresso boilers. Water softeners use ion‑exchange resin beads to replace hardness ions with sodium or potassium ions. The resin eventually becomes saturated and is regenerated by flushing with a brine solution (salt water), which removes the captured calcium and magnesium and recharges the resin.
Properly sizing and programming a softener is important. The unit should be set to the actual hardness of your water; if set too low it regenerates too frequently, wasting water and salt, and if set too high your water may remain hard. Softening should also be limited to water used for equipment and hot water lines to avoid unnecessary salt consumption. Softener performance can be hampered by iron or manganese fouling, sediment build‑up or bacterial growth. Softened water contains added sodium; this is generally safe but may be a concern for people on sodium‑restricted diets.
Simple summary
Water softeners swap the “hard” minerals in your water for sodium or potassium. This prevents scale and protects appliances. They don’t filter out contaminants; they just reduce hardness. Keep the salt tank full, set the hardness correctly and occasionally sanitize the unit to avoid slime or odor.
Reverse Osmosis (RO) Membrane Filters
Technical overview
Reverse osmosis uses a semi‑permeable membrane to physically separate pure water from dissolved salts, metals and other contaminants. Under pressure, water is forced through the membrane; clean water (permeate) collects on one side, while concentrated waste (brine) is flushed away. RO membranes can effectively remove lead, volatile organic compounds (VOCs), per‑ and polyfluoroalkyl substances (PFAS), arsenic, bacteria and viruses. Because dissolved ions cannot easily pass through the membrane, total dissolved solids (TDS) levels drop dramatically – often to near zero.
Efficiency is a major consideration. Traditional point‑of‑use RO systems produce about five gallons of waste water for every gallon of treated water. Newer membranes and designs can reduce waste to one or two gallons per gallon treated, and WaterSense‑labeled systems must have an efficiency of at least 30 % (no more than 2.3 gallons of waste per gallon of product). While RO provides exceptionally pure water, the high waste ratio, cost of replacement membranes and need for regular sanitizing make it best for specific applications such as drinking water or brewing espresso, rather than whole‑house treatment. Using RO on already treated municipal water may be unnecessary unless specific contaminants (e.g., lead or arsenic) are a concern.
Simple summary
Reverse osmosis forces water through a special membrane that blocks almost everything except water molecules. It removes a wide range of pollutants but wastes some water in the process. If you need extremely pure water for drinking or brewing, RO is a good option, but it’s overkill for general household use.
Blend Valves (Mixing Valves)
Technical overview
Ultra‑pure reverse‑osmosis water can taste flat and may be corrosive because it lacks minerals. A blend valve (also called a TDS blending valve) mixes a portion of filtered but mineral‑rich water with RO water to achieve a target mineral content and TDS level. RainDance Water Systems explains that a blending valve “involves blending the filtered water with the RO water to achieve the right TDS level … to adjust and customize the mineral content of the brew water”. When installed on an RO system, the valve allows the user to control how much untreated or carbon‑filtered water is added back, improving taste and maintaining equipment safety.
Industrial designers often set the blend to match recommended mineral levels for espresso machines (e.g., 50–100 ppm of alkalinity and hardness). Where raw water is microbiologically safe, blending also reduces the corrosivity of RO water and extends the life of pipes. For example, industry guidance from ROAGUA suggests mixing a tiny amount of filtered raw water into RO water to raise TDS and improve taste. After blending, a final polishing filter or UV sterilizer can ensure the water remains free of bacteria.
Simple summary
Blend valves let you put some minerals back into ultra‑pure RO water. They mix a small amount of normal water with RO water so it tastes better and won’t corrode your machine. Adjusting the valve changes the final TDS level. Make sure the source water is clean before blending.
TDS Meters
Technical overview
TDS stands for Total Dissolved Solids – a measure of the combined weight of minerals, salts and some organic matter dissolved in water. TDS meters are handheld devices that estimate this amount by measuring electrical conductivity; ionized solids increase conductivity and the meter converts that to parts per million (ppm). These meters are inexpensive and often used by aquarium owners, hydroponic gardeners and coffee professionals to monitor water quality.
However, TDS meters have limitations. They do not identify specific contaminants or indicate whether the water is safe to drink. High TDS readings often reflect beneficial minerals such as calcium and magnesium, while low TDS water could still contain harmful pollutants like lead or pesticides. Ideal TDS levels for drinking water vary; the Water Quality Association considers 80–100 ppm to give pleasant taste, whereas water below 17 ppm is considered very soft. A TDS meter is useful for tracking the performance of RO systems and blend valves, ensuring that mineral levels stay within a desired range.
Simple summary
A TDS meter is like a thermometer for minerals in your water. It measures the total amount of dissolved solids by checking how well the water conducts electricity. It’s handy for seeing if your RO system or blend valve is working, but it doesn’t tell you what’s in the water or if it’s safe to drink. Use it as one tool among many to manage your water quality.
Putting It All Together
For a coffee brewer or anyone concerned about water quality, understanding each component of your filtration system helps you make informed choices. Stable incoming pressure protects plumbing and ensures consistent flow. Sediment filters remove grit so carbon filters and membranes can do their job. Carbon filters tackle chlorine and organic chemicals, while softeners control scale‑forming minerals. Reverse osmosis delivers ultra‑pure water when needed, and blend valves and TDS meters help you dial in the ideal mineral content for taste and equipment safety. When combined thoughtfully, these technologies protect your health, improve the flavour of your beverages and extend the life of your appliances.
FAQ For Each Section
Incoming Water Pressure
-
What is the typical range for incoming water pressure in homes?
Most municipal supplies deliver water between about 60 – 80 psi. Pressures above 80 psi require a pressure‑reducing valve. -
Why does water pressure matter for coffee machines and plumbing?
Too much pressure strains gaskets and fittings, leading to leaks; too little pressure results in weak flow and inconsistent espresso extraction. -
What happens if my water pressure is too high?
Pressures over 80 psi can damage pipes and appliances and may void equipment warranties. A regulator should reduce it to 45–60 psi. -
How can I check my home’s water pressure?
Attach a simple pressure gauge to an outdoor spigot or the machine’s inlet. Readings in psi (pounds per square inch) show your current pressure. -
How do I reduce high water pressure?
Install a pressure‑reducing valve (PRV) on your main supply line. An experienced plumber can adjust it to your desired range. -
What should I do if my water pressure is too low?
Check for clogged sediment filters, undersized pipes or municipal issues. Boosters can increase pressure if the supply is consistently low. -
Do espresso machines require a specific pressure?
Most machines work best when inlet pressure is around 45–60 psi; too high may trip safety devices and too low can cause slow filling and poor extraction. -
Can low pressure affect water taste or extraction quality?
Low pressure can cause inconsistent flow through filters, leading to under‑extraction in espresso and off‑tastes. -
Are there codes regulating water pressure?
Plumbing codes in many jurisdictions mandate a PRV when supply pressure exceeds 80 psi. -
How does well water pressure differ from city water?
Well systems use a pressure tank with a pump. The EPA recommends setting well pressure tanks around 60 psi to protect the pump and conserve energy.
Sediment Filters
-
What do sediment filters remove?
They trap suspended particles like sand, silt, clay and rust before they reach sensitive equipment. -
Why do I need a sediment filter before other filters?
Removing grit protects downstream carbon cartridges, softeners and RO membranes from clogging and premature failure. -
What does the micron rating mean?
It refers to pore size; a 10‑micron filter captures particles 10 µm and larger. -
What is the difference between nominal and absolute ratings?
Nominal filters remove ~85 % of particles at the rated size, while absolute filters remove 99.9 %. -
How often should sediment filters be replaced?
It depends on water quality and usage; replace when pressure drops or on a regular schedule (often every 3–6 months). -
Can sediment filters remove bacteria or chemicals?
No. They remove only suspended solids and must be paired with carbon, softening or RO filters for other contaminants. -
Do I need a sediment filter if my water is treated by the city?
Municipal water can still carry particulates from aging pipes. A sediment filter keeps debris out of appliances. -
What materials are sediment filters made from?
Common media include spun polypropylene, pleated paper and string‑wound cotton. -
Do sediment filters reduce water pressure?
A clean filter has minimal impact; a clogged filter causes noticeable pressure drop. Replace when pressure drop is significant. -
How can I tell if my sediment filter is clogged?
Look for reduced flow at faucets or espresso fill times. Installing gauges before and after the filter helps monitor pressure drop.
Carbon Filters (Activated Carbon)
-
What does activated carbon remove?
It adsorbs chlorine, chloramine, volatile organic compounds, and many chemicals that cause taste and odor. -
What’s the difference between GAC and carbon block filters?
GAC contains loose granules; block filters compress carbon into a solid form. Blocks often provide better contact time and finer filtration. -
Can carbon filters remove lead or heavy metals?
Some carbon blocks reduce lead and radon, but they generally don’t remove all heavy metals or minerals. -
How often should I replace a carbon filter?
Manufacturers recommend replacement every 6–12 months or sooner if taste/odor returns; used carbon can release contaminants. -
Why does water taste better after carbon filtration?
Carbon removes chlorine and organic compounds that cause chemical or musty flavors. -
Do carbon filters remove microorganisms?
No. They must be used with a disinfectant stage (UV or RO) to remove bacteria or viruses. -
Should I use a whole‑house or point‑of‑use carbon filter?
Whole‑house filters treat all incoming water; point‑of‑use filters treat water just at the tap. Choose based on water quality and budget. -
What affects carbon filter performance?
Water flow rate, carbon surface area and pore size determine how effectively contaminants are adsorbed. -
How do I know when my carbon filter is exhausted?
Changes in taste or odor, a decrease in flow or exceeding the manufacturer’s rated gallons indicate it’s time to change. -
Can I clean and reuse a carbon filter?
No. Once carbon’s adsorption sites are filled, it cannot be regenerated at home; replace with a fresh cartridge.
Water Softener Filters
-
What is hard water?
Hard water contains high concentrations of calcium and magnesium minerals that cause scale buildup. -
How do water softeners work?
They use resin beads to exchange hardness minerals for sodium or potassium ions. -
What is regeneration?
The softener flushes the resin with brine to remove accumulated hardness and recharge the beads. -
Does softened water add sodium?
Yes, softened water contains additional sodium. Those on sodium‑restricted diets may choose potassium chloride or softener alternatives. -
How often should a softener regenerate?
It depends on hardness and usage. Units regenerate when resin capacity is exhausted; setting hardness correctly avoids excess cycling. -
Do I need a softener if I have an RO system?
RO removes minerals, but adding a softener before the RO protects the membrane and reduces scaling. -
Can iron or manganese foul a softener?
Yes. High levels of iron or manganese can clog resin and require a pre‑treatment filter. -
Are there eco‑friendly alternatives?
Salt‑free conditioners crystallize hardness minerals without exchanging them. They reduce scaling but do not make soft water. -
Should I soften all water in my home?
Many systems bypass cold‑drinking taps to avoid unnecessary sodium while still protecting appliances and plumbing. -
How can I measure hardness to set my softener?
Use a hardness test kit or obtain a water quality report from your utility. Set your softener to match measured hardness.
Reverse Osmosis Membrane Filters
-
How does reverse osmosis differ from other filters?
RO forces water through a semi‑permeable membrane that blocks most dissolved ions and contaminants. -
What contaminants does RO remove?
It can remove lead, VOCs, PFAS, arsenic, bacteria and viruses. -
How efficient are typical RO systems?
Standard units waste about five gallons for every gallon produced. WaterSense models improve efficiency to at least 30 % (no more than 2.3 gallons wasted per gallon produced). -
What is a WaterSense labeled RO system?
These systems meet EPA criteria for reduced water waste and performance; they must achieve at least 30 % efficiency and meet contaminant reduction standards. -
Do I need a storage tank with an RO unit?
Under‑sink units often include a tank to provide water on demand. Tankless systems are available but may dispense more slowly. -
How often should I replace an RO membrane?
Typically every 2–3 years, or as specified by the manufacturer, depending on water quality and usage. -
Is RO water safe to drink?
Yes, but it lacks minerals and can taste flat. Many users remineralize or blend water to improve flavor. -
Can RO water be corrosive?
Ultra‑pure water is more aggressive toward metals, which is why blending or remineralization is recommended for espresso and plumbing. -
Do I need RO if I already have a softener and carbon filter?
RO provides extra removal of dissolved solids and contaminants. Whether you need it depends on your source water and taste preference. -
What maintenance does an RO system require?
Replace pre‑filters every 6–12 months, sanitize the system annually and monitor membrane performance with a TDS meter.
Blend Valves
-
What is a blend (mixing) valve?
A blend valve mixes a controlled amount of mineral‑rich filtered water back into reverse‑osmosis water to reach a desired TDS and flavor. -
Why add minerals back to RO water?
Pure RO water can taste flat and may be corrosive. Blending minerals improves taste and protects pipes and coffee equipment. -
How do I adjust a blend valve?
The valve has a dial or screw to increase or decrease the amount of bypass water. Adjust slowly while monitoring TDS until your target is reached. -
Do I need a blend valve if my water source is already balanced?
If your incoming water meets taste and mineral recommendations, blending may be unnecessary. Use only RO or carbon filtration as needed. -
Does blending reintroduce contaminants?
Yes, any contaminants present in the bypass water will be added back. Only blend water that has been filtered and is microbiologically safe. -
What TDS range should I aim for after blending?
Coffee professionals target 50–100 ppm for espresso; bottled drinking water often ranges from 30–150 ppm. -
Can I blend water without a valve?
You can mix RO and filtered water manually, but a valve provides precision and consistency. -
Are blend valves only for coffee shops?
No. They’re used wherever taste and corrosion control matter, including aquariums, hydroponics and drinking water systems. -
Do blend valves need maintenance?
Periodically flush and clean to prevent scaling and ensure consistent blending. Check calibration with a TDS meter. -
Can blend valves be installed on any RO system?
Most aftermarket valves can be retrofitted, but ensure compatibility with your system’s flow rate and pressure.
TDS Meters
-
What does a TDS meter measure?
It estimates the total dissolved solids in water by measuring its electrical conductivity. -
How does a TDS meter work?
The probes send a small electric current through the water; dissolved ions conduct electricity and the meter converts this to a ppm reading. -
Why monitor TDS?
Tracking TDS helps gauge filter performance, adjust blend valves and monitor hardness or mineral levels over time. -
What’s a good TDS range for drinking water?
Many consider 80–100 ppm ideal for taste, though the WHO allows up to 500 ppm for tap water. Espresso recipes often aim lower. -
Can a TDS meter detect contaminants like lead or bacteria?
No. It measures only conductivity; harmful contaminants can be present even with low TDS. -
Do TDS meters need calibration?
Yes, calibrate periodically using a known solution to maintain accuracy. -
How do I interpret TDS readings for coffee brewing?
Use readings to maintain consistent mineral content when blending water. Very low TDS (below 20 ppm) can make coffee taste flat, while very high TDS can lead to over‑extraction. -
Why might my TDS reading change after installing a filter?
Carbon filters remove chemicals without affecting TDS, while softeners exchange minerals and RO drastically lowers TDS. -
Is a high TDS always bad?
Not necessarily. High TDS may indicate beneficial minerals. It becomes problematic if levels exceed health guidelines or cause scaling. -
Are TDS meters accurate?
Consumer‑grade meters are accurate within a few percent. For critical applications, laboratory testing provides a complete water quality analysis.
