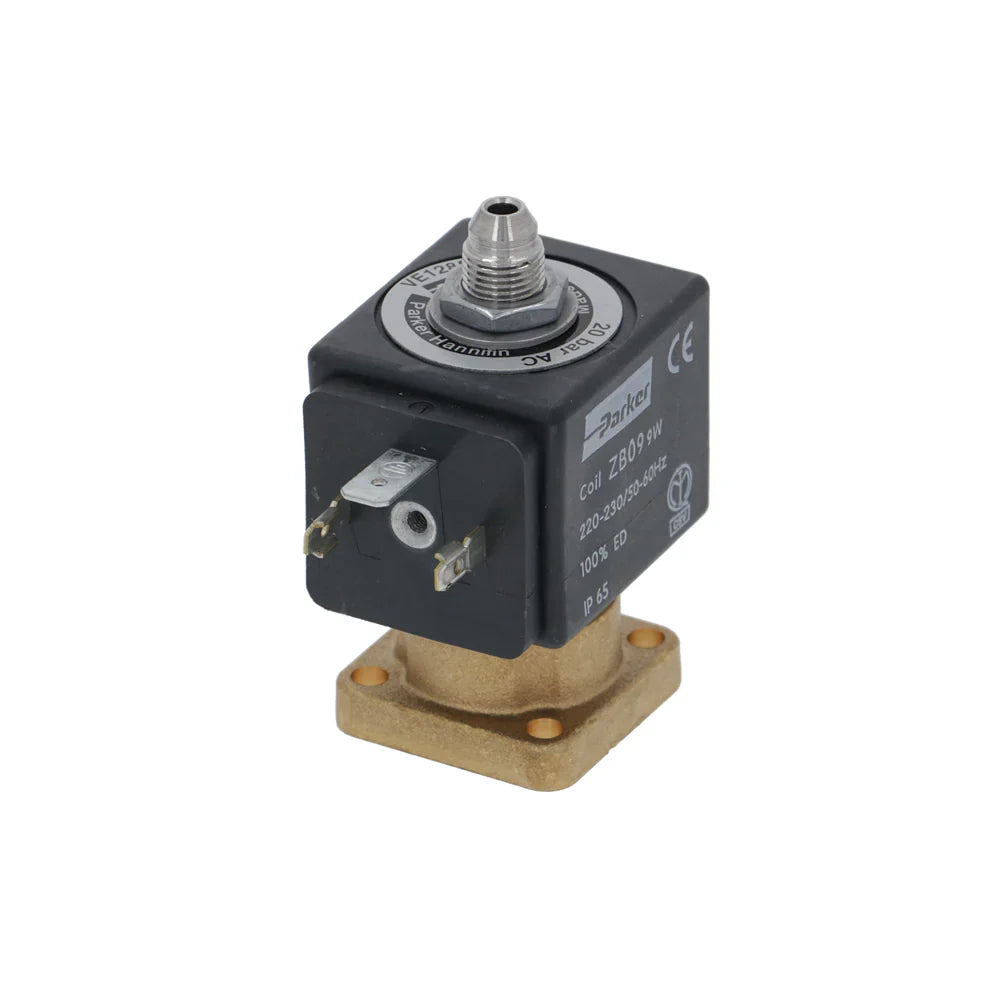

Running an espresso bar isn’t just about coffee beans and baristas; it’s also a lesson in fluid mechanics. Hidden inside many machines is a small brass device that determines whether water flows or stops. This post explores the solenoid valve—an electrically controlled valve that manages brew water in an espresso machine—and shows why understanding and maintaining it can keep your coffee flowing and your café running smoothly.
What It Is
A solenoid valve is an electromechanical device used to control the flow of a liquid or gas. It has two main parts: a coil of wire (the solenoid) and a valve body that contains ports and seals. When voltage is applied to the coil, it generates a magnetic field that attracts or repels a ferromagnetic plunger inside the valve. This movement opens or closes passageways inside the valve body and directs the fluid accordingly. Solenoid valves are used in a wide array of applications—from controlling water flow in dishwashers to regulating propane in gas stoves and fuel in car engines.
Espresso Machine Context
In an espresso machine, the solenoid valve sits between the brew boiler and the group head. When you start a shot, the coil energizes and lifts the plunger, allowing pressurized water to flow through the coffee puck. At the end of the shot, the coil de‑energizes, the plunger returns to its seat, and pressure is vented to the drip tray. This quick pressure release dries the spent puck and prevents messy spurts—a hallmark of the three‑way solenoid valve. Three‑way valves have three ports and two orifices; one port is always open so the valve can direct flow or vent pressure depending on whether the coil is energized.
Why It Matters
The solenoid valve controls brew start and stop, protects your machine from over‑pressure, and improves shot quality. When it fails, water may flow uncontrollably or dribble into the drip tray, making the machine unusable. Because these valves cycle dozens of times each day, reliability is crucial. Investing in a quality solenoid valve ensures consistent shot timing, a dry puck, and clean workflow.
How It Works
When the machine’s controller sends power to the solenoid, current flows through the coil and creates a magnetic field. This field pulls the plunger upward (or downward, depending on design), opening a port to allow water to flow. When the current stops, a spring pushes the plunger back to its resting position, closing the port and venting residual pressure through a different outlet. This simple electromechanical motion can open and close valves thousands of times without human intervention. In three‑way designs, the valve’s default position typically routes the brew circuit to the drain; energizing it connects the boiler to the group head and blocks the drain.
The key components include:
- Coil: Insulated copper wire wound around a bobbin; energizing it creates the magnetic field.
- Plunger/Armature: A ferromagnetic rod that moves in response to the magnetic field and opens or closes the valve.
- Valve body and seals: Channels fluid to different ports depending on the plunger’s position.
- Return spring: Restores the plunger to its de‑energized position when power is removed.
Modern solenoid valves are highly efficient; they require little wiring and can handle a wide variety of liquids and gases. They’re often used for general on/off control, calibration and test stands, process control, irrigation systems and washing machines.
Where Else It’s Used
Because solenoid valves are versatile, they appear in many everyday devices. Their ability to automatically open and close flow paths makes them ideal for:
| Application | Role |
|---|---|
| Washing machines | Controls the intake of water during wash cycles, opening only when needed. |
| Irrigation systems | Opens and closes sprinkler lines for timed watering. |
| Fuel and gas systems | Regulates the flow of propane in gas stoves and fuel in automotive engines. |
| Printers and medical devices | Dispenses precise amounts of ink or medication by controlling flow volume and rate. |
| Industrial automation | Provides on/off and directional control in process control systems. |
When to Replace
A solenoid valve is a working component that wears out over time, especially in the high‑temperature, mineral‑laden environment of espresso machines. Signs it needs replacement include:
- Water won’t stop flowing: If water continues to flow after you stop the shot, the valve may be stuck open due to scale or a failed coil.
- Constant dripping: A slow drip from the group head or into the drip tray suggests the valve isn’t sealing properly, often due to scale buildup or worn seals.
- Failure to energize: If no “click” is heard when starting a shot, the coil may be burned out or the electrical connection may be corroded.
- Erratic pressure release: An uneven or delayed release of water after a shot can indicate a failing 3‑way solenoid valve.
Routine descaling helps extend valve life because mineral deposits increase friction on the plunger and can obstruct the ports. If cleaning doesn’t restore normal function, replace the valve. Remember that solenoid coils are electrical components—always disconnect the machine from power before servicing.
Scientific Insight
Solenoid valves demonstrate the practical application of electromagnetism. When current runs through the coil, it generates a magnetic field that converts electrical energy into mechanical motion. The plunger, typically made of soft iron, becomes magnetized and moves against the return spring. When the current stops, the magnetic field collapses and the spring pushes the plunger back. This cycle can be repeated quickly and reliably thousands of times.
Scale and mineral buildup affect the valve’s performance. Hard water deposits on the plunger and valve seat increase friction and reduce the strength of the magnetic force relative to the spring. This causes sluggish operation and leaking. Maintaining proper water filtration and regularly descaling the machine prevents these deposits and extends the solenoid’s service life.
FAQs
Why does water dump into the drip tray after a shot?
That “whoosh” you hear after pulling a shot is the 3‑way solenoid valve venting the pressurized brew water to the drain. De‑energizing the coil causes the plunger to return to its default position, connecting the group head to the exhaust port so pressure can dissipate quickly.
What is a 3‑way solenoid valve?
It’s a solenoid valve with three ports and two orifices; one port is always open. Energizing the coil changes which ports are connected, enabling the valve to either direct pressurized water to the group head or vent it to the drip tray.
How is a solenoid valve different from a mechanical valve?
Mechanical valves require manual levers or cam-driven mechanisms to open or close. Solenoid valves use an electromagnetic coil to actuate the plunger automatically, allowing electronic control and faster response times..
Why does my espresso machine keep dripping after a shot?
Persistent dripping often indicates scale buildup or worn seals inside the solenoid valve. Descaling the machine and cleaning the valve may solve the issue; if not, replacing the valve is recommended.
Can I clean a solenoid valve myself?
Yes. Many espresso machines allow access to the solenoid valve from the top of the group head. Unplug the machine, remove the valve, and soak it in descaling solution. Use a soft brush to remove deposits. Always refer to your manufacturer’s service manual.
How long do solenoid valves last?
A high‑quality solenoid valve can last several years in a home machine and many months in a busy café. Lifespan depends on water quality, cleaning frequency, and the number of cycles. Hard water shortens life due to scaling.
Are solenoid valves expensive?
Basic espresso solenoid valves typically cost between $20 and $60, depending on quality and design. Investing in a reputable replacement can prevent more costly downtime.
Do solenoid valves need a specific voltage?
Yes. Espresso machines generally use 120‑V or 230‑V AC coils. Using the wrong voltage can cause the valve to chatter, overheat or fail. Always match the replacement coil’s voltage to the original.
Why is my solenoid valve buzzing or humming?
Buzzing can result from an incorrect voltage, a failing coil, or mechanical wear. Check the electrical supply and consider replacing the coil if noise persists.
Can I upgrade to a different valve type?
Most espresso machines are designed for a specific valve size and port configuration. While you can source higher‑quality replacements, ensure they match the original specifications. If in doubt, consult the manufacturer or a technician.
Keeping the solenoid valve in good condition ensures that every shot starts and stops cleanly and that your machine operates safely. Regular maintenance and timely replacement will save time, reduce mess, and protect your investment.
