Brewing great espresso isn’t only about grind size and pressure. An espresso machine’s steam boiler must maintain the right amount of water to generate dry, powerful steam and prevent catastrophic damage. To do that, most prosumer and commercial machines use a steam boiler fill probe—a small metal rod inside the boiler that senses when the water level is correct. If the boiler overfills or runs dry, you risk poor steaming performance or ruined heating elements. Understanding how the fill probe works, how to maintain it, and how water quality impacts it will help you protect your investment and brew with confidence.
What It Is

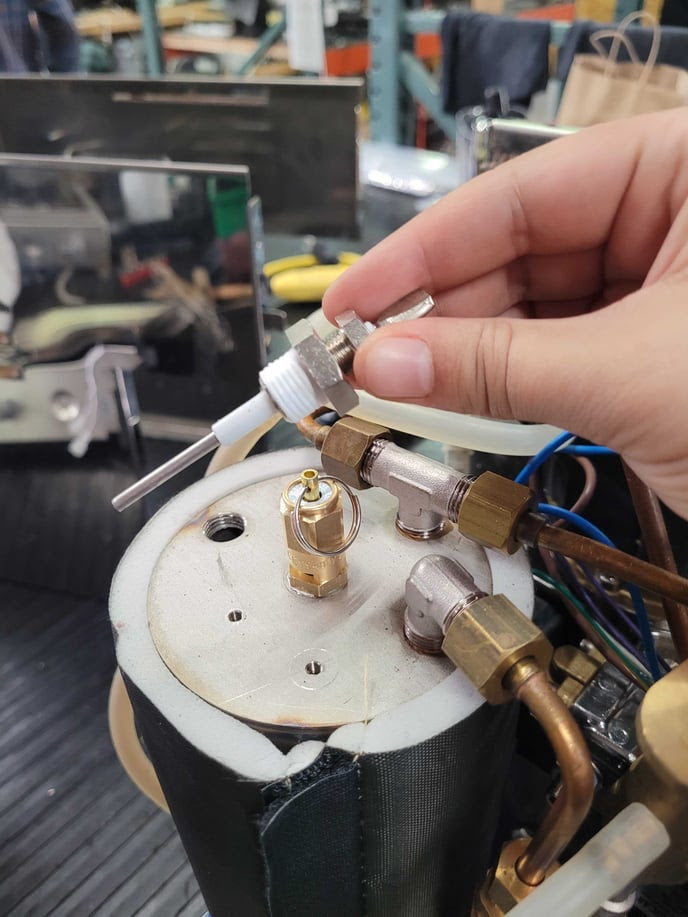

The steam boiler fill probe (sometimes called the autofill sensor or water level probe) is a thin, conductive rod inserted into the top of the boiler. Its purpose is to detect the presence of water at a specific level so the autofill system knows when to add water and when to stop. A diagram of common heat exchanger boilers from 1st‑line Equipment shows a “black line with a yellow sleeve” representing the autofill sensor, which ensures the boiler is neither over- nor under‑filled. By controlling the water level automatically, the probe keeps enough steam space for dry steam while preventing the heating element from running dry.
Simple explanation
For newcomers: think of the fill probe as a dipstick with electricity. When it touches water, it sends a signal to the machine’s brain to stop filling. When the water drops and the probe is exposed to air, it tells the machine to add more water. This automatic feedback loop protects your machine from overfilling or running dry.
Why It Matters
Maintaining the right water level in the steam boiler is critical. Too little water exposes the heating element to air; this “dry firing” can warp or destroy heating elements and even create a fire hazard. Too much water reduces steam volume, leading to weak, wet steam and potential pressure spikes as water enters the steam circuit. The fill probe prevents both extremes by providing real‑time feedback on the boiler’s water level. 1st‑line notes that in their diagrams the autofill sensor ensures the boiler does not over or under fill. Without it, you’d need constant manual monitoring and risk damaging your machine.
How It Works
The physics behind the probe
The fill probe uses water’s electrical conductivity to detect whether it is submerged. Spirax Sarco’s boiler training module explains that a conductivity probe is simply a metal rod suspended in water. When the probe is immersed, current flows through the circuit; when it is lifted out of the water, current stops. This principle allows a controller to determine whether the water level has reached the probe’s tip and trigger actions such as starting or stopping a pump.
In espresso machines, the probe is connected to the control board. When water covers the probe, dissolved ions in the water create a conductive path between the probe and the boiler wall (which is grounded), effectively “earthing” the probe. This tells the control board to close the fill valve. When the water drops below the probe tip, the circuit opens, and the controller activates a pump or solenoid to add water.
What can go wrong
- Low mineral water: The Talk Coffee blog notes that espresso machines rely on water’s ionic content to conduct electricity. If the water is too pure—such as rainwater, distilled water or overly aggressive filtration—the water cannot conduct an electrical charge, causing the boiler to keep filling until it overflows because the probe never gets earthed. The article suggests switching to water with higher ionic content or adding bicarbonate to restore conductivity.
- Scale or debris: Over time, minerals can coat the probe or its insulator. Spirax Sarco warns that dirt build‑up on the insulator can create a conductive path between the probe and the metal tank, causing current to flow even when the probe tip is out of the water. This makes the controller think the boiler is full, so it may not refill when it should, potentially exposing the element to air.
- Very pure water: The same Spirax Sarco resource notes that applications using very pure water (conductivity < 5 μS/cm) are not suitable for standard conductivity probes. If you use reverse osmosis or deionized water, the probe may fail to register that water is present.
How the system stays safe
The fill probe works with other safety devices. Should the probe fail and the boiler overfill, the safety valve will vent excess pressure. On the other side, most machines include low‑water alarms or secondary probes in the reservoir to ensure the pump doesn’t run dry. Some machines use capacitance probes (which sense capacitance changes rather than conductivity) or float sensors for continuous level control; these alternatives may be less sensitive to water purity.
Where Else It’s Used
- Industrial boilers and cooling towers – Conductive and capacitive level probes are widely used in steam boilers and feedtanks to start/stop feedwater pumps and raise alarms. They provide reliable on/off control and protect large boilers from low‑water conditions.
- Dishwashers and washing machines – Water level sensors regulate the amount of water used in household appliances, ensuring efficiency and preventing wastage.
- Irrigation and water treatment – In agriculture and water treatment plants, level sensors monitor reservoirs and tanks to optimize water use and prevent overflow.
- Marine and shipping – Level sensors in bilge systems prevent overfilling and maintain stability.
These applications show that conductivity-based level detection is a proven technology used across industries for safety and efficiency.
When to Replace or Clean
Although fill probes are durable, they should be inspected and maintained regularly. Replace or service the probe when you notice:
- Overfilling or continuous filling – If your boiler keeps filling and water leaks from the safety valve or vacuum breaker, the probe may be dirty or water may be too pure. Clean the probe and consider using water with higher mineral content.
- No autofill / low‑water alarm despite full boiler – This indicates that scale or debris has coated the probe, preventing it from detecting water. Spirax Sarco notes that dirt on the probe’s insulator can create false conduction. Remove and clean the probe or replace if corroded.
- Erratic water level – If the machine fills and stops unpredictably, check the probe’s wiring and insulation. Talk Coffee lists faults in the control board or wiring, or a probe covered in debris, as possible causes.
- Physical damage or corrosion – Inspect the probe for pitting, corrosion or damaged insulation. Replace if the metal is worn or the insulator is cracked.
Routine maintenance: Wipe down the probe during descaling. Some machines allow you to unscrew the probe from the boiler top (after powering down and depressurizing) for inspection. Use a soft cloth to remove scale; avoid abrasive materials that could damage the insulator. If the probe is beyond cleaning, replacement parts are widely available.
Scientific Insight
Water conductivity depends on the number and mobility of ions dissolved in it. Icon Process Controls explains that water with high mineral content (hard water) exhibits elevated conductivity because calcium and magnesium ions significantly increase its conductive capacity. Conversely, very pure water has very low conductivity because it lacks free ions.
Conductivity probes rely on this ionic conduction. Spirax Sarco emphasizes that applications using very pure water are not suitable for conductivity probes. On the other hand, Talk Coffee warns that if water is too pure (for example, from rainwater or certain bottled waters), the probe never senses that it is submerged, causing the boiler to overfill.
Additionally, mineral deposits or dirt can build up on the probe’s insulator and create a conductive path even when the probe is out of water, leading to false “full” readings. This is more likely in areas with hard water because mineral scale forms faster. The combination of water purity and mineral scale means baristas must select appropriate water and maintain the probe regularly.
FAQs (Frequently Asked Questions)
- What does the steam boiler fill probe do? It detects when the boiler water reaches a specific level by using the water’s electrical conductivity. When the probe tip is submerged, current flows through the water and signals the controller to stop filling.
- Is the fill probe the same as a float? No. A float is a mechanical device that rises and falls with water level, while a fill probe uses electrical conductivity. Both serve to control water level but operate differently.
- How does the probe know when to add water? When the water level drops below the probe, the electrical circuit opens. The control board detects this change and activates the pump or solenoid to add water.
- Can I use distilled or reverse‑osmosis water in my espresso machine? Pure water has very low conductivity and may prevent the probe from sensing water, causing overfill. Use water with moderate mineral content or add a small amount of bicarbonate to increase conductivity.
- Why does SoCal water cause issues? Southern California’s municipal water can be very hard, containing high levels of calcium and magnesium. Hard water has high conductivity, which allows the probe to work, but it also deposits scale on the probe and insulator. Scale build‑up can cause false readings. Regular cleaning or water filtration with mineral balancing helps.
- What happens if the probe is dirty? Dirt or scale on the probe’s insulator can create a conductive path between the probe and the boiler wall even when it is out of the water. This may stop the boiler from refilling. Cleaning restores accurate detection.
- How often should I clean or replace the fill probe? Inspect and clean the probe during every descaling cycle (typically every few months). Replace it if the metal is pitted, the insulator is cracked, or cleaning doesn’t resolve erratic filling.
- Can I replace the probe myself? Many machines allow user replacement. Always power off, unplug, and let the machine cool. Release boiler pressure by opening the steam wand, then carefully unscrew the probe from the boiler top. Reverse the process with the new probe, ensuring a tight seal. If unsure, consult a technician.
- What if my machine keeps filling and water gushes out? Turn off the machine immediately. Overfilling is often caused by water that’s too pure or a dirty probe. After drying the machine, use water with higher mineral content and clean the probe.
- My machine shows a low‑water alarm even when the boiler is full—why? The probe may be coated with scale or debris, preventing it from sensing water. Remove and clean the probe, and check wiring connections.
- What’s the difference between conductivity and capacitance probes? Conductivity probes rely on electrical conduction through the water and require some ionic content. Capacitance probes detect changes in capacitance as the water level changes and can work with pure water; they’re more complex and often used in industrial applications.
- Do dishwashers use similar sensors? Yes. Household appliances like washing machines and dishwashers use water level sensors to regulate the amount of water used and prevent overflow.
- Why does mineral scale form faster on the probe than elsewhere? The probe is exposed to water in a hot environment, accelerating precipitation of calcium and magnesium ions. This scale is conductive and can bridge the insulation, leading to false signals.
- Can I prevent scale on the probe? Use water with balanced mineral content (around 50–100 ppm total hardness) and descale regularly. Some baristas remove the probe and wipe it with a cloth during each descaling cycle.
- Is a malfunctioning fill probe dangerous? Yes. A failed probe can cause the boiler to run dry, potentially damaging the heating element, or overfill the boiler, causing leaks and safety valve activation. Fortunately, other safety devices (low‑water alarms, safety valves) provide redundancy, but a faulty probe should be addressed immediately.
By understanding and caring for the steam boiler fill probe, you’ll ensure your espresso machine maintains the right water level and continues producing silky, velvety steam for years to come. Choose suitable water, clean the probe regularly, and monitor your machine’s behavior for trouble‑free brewing.
