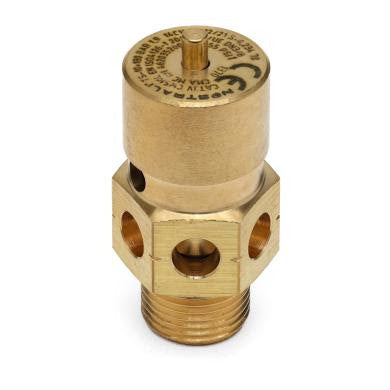

Safety Valves: Your Espresso Machine’s Silent Bodyguard

Making beautiful espresso requires finely tuned pressures. Like any pressurized system, an espresso machine needs a failsafe to protect you, the equipment and your workspace. That job falls on a humble, often‑overlooked component: the safety valve (also called the pressure relief valve). This spring‑loaded device sits on top of the steam boiler and automatically opens if pressure creeps too high, venting steam and preventing a catastrophic failure. In a well‑maintained machine you may never notice it working—but if something goes wrong, it can be the difference between a gentle hiss of steam and a ruptured boiler.

What It Is

In espresso machines, the safety valve is a calibrated mechanical valve designed to release steam when boiler pressure exceeds a preset threshold. Most espresso boilers operate around 1–1.5 bar of pressure (~15–22 psi). The safety valve is factory‑set to open at a slightly higher pressure, usually marked on the valve’s body. Inside the valve sits a spring‑loaded poppet (or piston) that remains closed under normal conditions. If pressure rises beyond the set point, the upward force overcomes the spring and lifts the poppet off its seat, venting steam to the atmosphere. Once pressure falls back into the safe range, the spring pushes the poppet closed again. This rapid “pop” action ensures the valve opens fully and closes reliably.

Why It Matters

Steam boilers contain a lot of stored energy. When water is heated and confined, pressure can climb quickly. If that pressure is not controlled, the boiler or other components can fail violently. The Specialty Coffee Association warns that over‑pressurization in steam systems can cause property damage, injury and even death. Safety valves provide a last line of defence by automatically relieving excess pressure before the system reaches dangerous levels. That’s why they’re mandated by safety regulations; they protect life and property and keep your machine operating within its design limits. A leaking or faulty valve can lead to inconsistent pressure (producing weak or “blown” shots), constant hissing, or—if stuck closed—an over‑pressurized boiler. Keeping this component in good working order is essential for both safety and espresso quality.

How It Works

Safety valves are remarkably simple yet precisely engineered. A calibrated spring inside the valve applies a closing force on a poppet that seals against an orifice. Upstream boiler pressure exerts an opposing force. When the boiler pressure exceeds the spring’s preload (the set pressure), the poppet lifts slightly and steam begins to escape. As pressure rises further, the valve pops open fully to release a large volume of steam and rapidly drop the boiler pressure. Once the pressure drops below the reseat pressure, the spring pushes the poppet back onto its seat, resealing the system. Because these valves are factory‑set and sealed, you should never attempt to adjust the locking nut—altering the set point can compromise safety. Some espresso machines use valves with split rings or tabs to allow pressure equalization after brewing; these assist with safe disassembly.

Where Else It’s Used

• Steam and hot‑water boilers – Industrial boilers in factories, power plants and heating systems use safety valves to vent excess steam and prevent explosions.
• Pressure cookers – Domestic cookers incorporate spring‑loaded or weighted safety valves that open when internal pressure exceeds about 80–100 kPa (11–15 psi), keeping cooking pressure within safe limits.
• Chemical and fuel systems – Relief valves protect pipelines and storage tanks from over‑pressurization caused by thermal expansion or blockages. They are also common in compressed air receivers and gas cylinders.
• Heating appliances – Water heaters, hydronic heating systems and HVAC equipment use similar safety valves to prevent scalding and equipment damage.

These cross‑industry applications highlight how important pressure relief valves are: anywhere a sealed vessel contains pressurized fluid, a safety valve provides essential protection.

When to Replace

A safety valve is a robust component, but it does wear out. Replace or service the valve if you notice any of the following:

1. Constant steam leak or hissing – Continuous steam escaping from the valve indicates the sealing surfaces or spring may be damaged. The 9Barista knowledge‑base notes that leaks from the head of the valve often mean the internal seal is dislodged and the valve should be replaced.
2. Failure to seal after discharge – A properly functioning valve should reseat once pressure drops below the set point. If it continues to leak or drips water, the valve’s internal seal or o‑rings may have failed.
3. Premature opening or low set point – Valves occasionally open at lower‑than‑normal pressures due to weakened springs. This causes low boiler pressure and under‑extracted shots.
4. Stuck closed – If the valve fails to open when pressure spikes, the boiler can become dangerously over‑pressurized. Do not attempt to adjust or repair a stuck valve yourself; replacement is the only safe option.
5. Physical damage or tampering – A valve showing corrosion, scale buildup or evidence of tampering should be replaced. Regulators require valves to be factory set and marked; altering them without proper equipment is unsafe.

As a general guideline, home baristas may never need to replace a safety valve during the machine’s life if it remains clean and free from scale. Commercial or high‑usage machines, however, should have safety valves inspected annually by a qualified technician and replaced every few years or if any of the issues above appear.

Scientific Insight

At the heart of every safety valve lies a calibrated spring system. Engineers design these springs to compress under a precise force; their stiffness (spring constant) determines the set pressure. Pressure relief valves were first developed to prevent steam boiler explosions in the 19th century and continue to be critical components in modern pressure systems. The valve’s poppet includes an elastomeric seal that must withstand high temperatures and steam. Thermal cycling and mineral scale can degrade this elastomer over time, leading to leaks—especially if the valve opens frequently. Regulations require safety valves to be clearly marked with their set pressure and to be tested using certified equipment. Different devices use variations on this principle: pressure cookers may employ weighted, spring‑loaded or fusible plug safety valves, each with its own advantages in accuracy, cost and reliability. Despite these differences, the underlying physics remains the same—when the force exerted by internal pressure exceeds the spring’s resisting force, the valve opens and releases energy to protect the vessel.

FAQs (Frequently Asked Questions)

1. What does a safety valve do in an espresso machine? It protects the steam boiler from over‑pressure by opening and venting steam when pressure exceeds a preset limit.
2. Is it the same as a check valve or vacuum breaker? No. A safety valve releases excess pressure; a check valve allows flow in one direction to prevent backflow, while a vacuum breaker prevents negative pressure. Each serves a distinct purpose.
3. Do I need to adjust my safety valve? No. Safety valves are factory‑calibrated and sealed. Tampering with the set pressure can compromise safety and is usually illegal.
4. How do I know if my safety valve is failing? Listen and look for constant hissing or dripping, observe if the valve opens at lower‑than‑normal pressure, or check for visible damage or scale buildup. Any of these signs warrant inspection or replacement.
5. Can I test the safety valve myself? Some machines allow manual lifting of the valve’s tab to equalize pressure after brewing. However, thorough testing involves gradually increasing boiler pressure to just below the valve’s blow‑off point and checking for leaks—a task best left to trained technicians.
6. How often should a safety valve be replaced? It depends on usage. Home machines may never need replacement. High‑volume cafés should have safety valves inspected annually and replaced every few years or sooner if issues arise.
7. Why is my machine constantly venting steam? A safety valve that’s leaking or opening prematurely may be damaged or clogged with scale. It might also indicate a faulty pressurestat causing pressure spikes.
8. Can I clean a safety valve? Light scale around the exterior can be wiped away, but internal cleaning or disassembly is not recommended. If scale or debris prevent proper sealing, replace the valve.
9. Are all safety valves the same? No. Valves vary by thread size, set pressure and materials. Always replace with a valve rated for your machine’s boiler and follow manufacturer recommendations.
10. Why do pressure cookers have multiple safety mechanisms? Pressure cookers often include primary vents plus secondary safety valves to provide redundancy; some even use fusible plugs that melt under extreme pressure/temperature.
11. What happens if the valve sticks closed? The boiler could become dangerously over‑pressurized, leading to equipment failure or explosion. If you suspect a stuck valve, turn off the machine and contact a service professional immediately.
12. Does water quality affect the safety valve? Yes. Hard water promotes mineral scale inside the boiler and valve, increasing the risk of leaks or sticking. Use filtered or softened water and descale regularly.
13. Why did my safety valve open during brewing? The machine likely exceeded its normal operating pressure due to a faulty pressurestat or a clogged steam wand. The valve did its job by venting excess pressure. Have the machine inspected.
14. Can I replace the safety valve myself? Many prosumer machines allow user replacement. Always let the machine cool completely, equalize pressure by lifting the valve’s tab (if present) and never adjust the locking nut. Follow manufacturer instructions or consult a technician.
15. Is it dangerous if this valve fails? Yes. The safety valve is a critical safety component. If it fails to open under over‑pressure, the boiler can explode. Conversely, if it leaks constantly, the machine cannot build proper pressure. Replace any faulty valve immediately.

Maintaining your safety valve ensures your espresso machine operates safely and consistently. Regular inspections, proper water quality and professional servicing will keep this silent guardian ready to protect you—so you can enjoy perfect espresso without worry.
