Expansion Valve: The Drip‑Tray Guardian of Brew Pressure

Owning an espresso machine means managing a miniature boiler under high pressure. When cold water is heated from room temperature to 200 °F (93 °C), its volume increases roughly 4 %, which can cause a sealed brew circuit to build dangerous pressure. An expansion valve—sometimes called an over‑pressure valve—is a small but essential component that protects the machine by venting this expanding water. This post explains what the expansion valve does, why it matters, how it works and when to replace it. It also highlights similar devices used in other industries and answers common questions.

What It Is

In most dual‑boiler espresso machines the expansion valve sits in the drain box or drip‑tray area. The La Marzocco–style valve sold by Kaldi is described as a high‑precision pressure relief valve built from durable brass. It connects to the brew boiler via a threaded fitting (usually G1/8 or ¼ inch) and remains closed during normal extraction. When the internal pressure exceeds its 12‑bar (≈174 psi) set point—typically during the heating cycle or after a shot—the valve opens momentarily to bleed water into the drip tray. This simple action protects the boiler and internal plumbing from over‑pressurization and restores the system to a safe operating range.

Relatable explanation

Think of the expansion valve like the relief slot on the cap of a pressure cooker. When the pressure inside the cooking pot climbs beyond the safe limit, the valve lifts to vent steam and prevent an explosion. Likewise, the expansion valve in your espresso machine opens briefly to let a few drops of water escape into the drip tray whenever pressure spikes above its preset value. Without it, the sealed brew circuit could experience dangerous pressure spikes as the water heats and expands.

Why It Matters

Water is essentially incompressible. When it is heated in a closed system it expands, and the extra volume has nowhere to go. On a home water heater, plumbing codes require either an expansion tank or a thermal expansion valve to relieve this pressure. Espresso machines solve the same problem on a smaller scale. During warm‑up, the brew boiler’s temperature rises rapidly, causing the water inside to expand. The expansion valve vents a small amount of water (often just a few milliliters) to keep pressure from rising above about 12 bar. If the valve were missing or stuck closed, pressure could continue climbing until another safety device opens—or until a component fails. That’s why replacing a worn or leaking valve is considered essential maintenance.

Beyond safety, proper pressure control protects flavour. Pumps used in espresso machines can deliver 15–18 bar of pressure; without regulation the shot could be over‑extracted or under‑extracted depending on puck resistance. The expansion valve (working alongside the pump’s over‑pressure valve) prevents such fluctuations by capping brew boiler pressure at the desired level.

How It Works

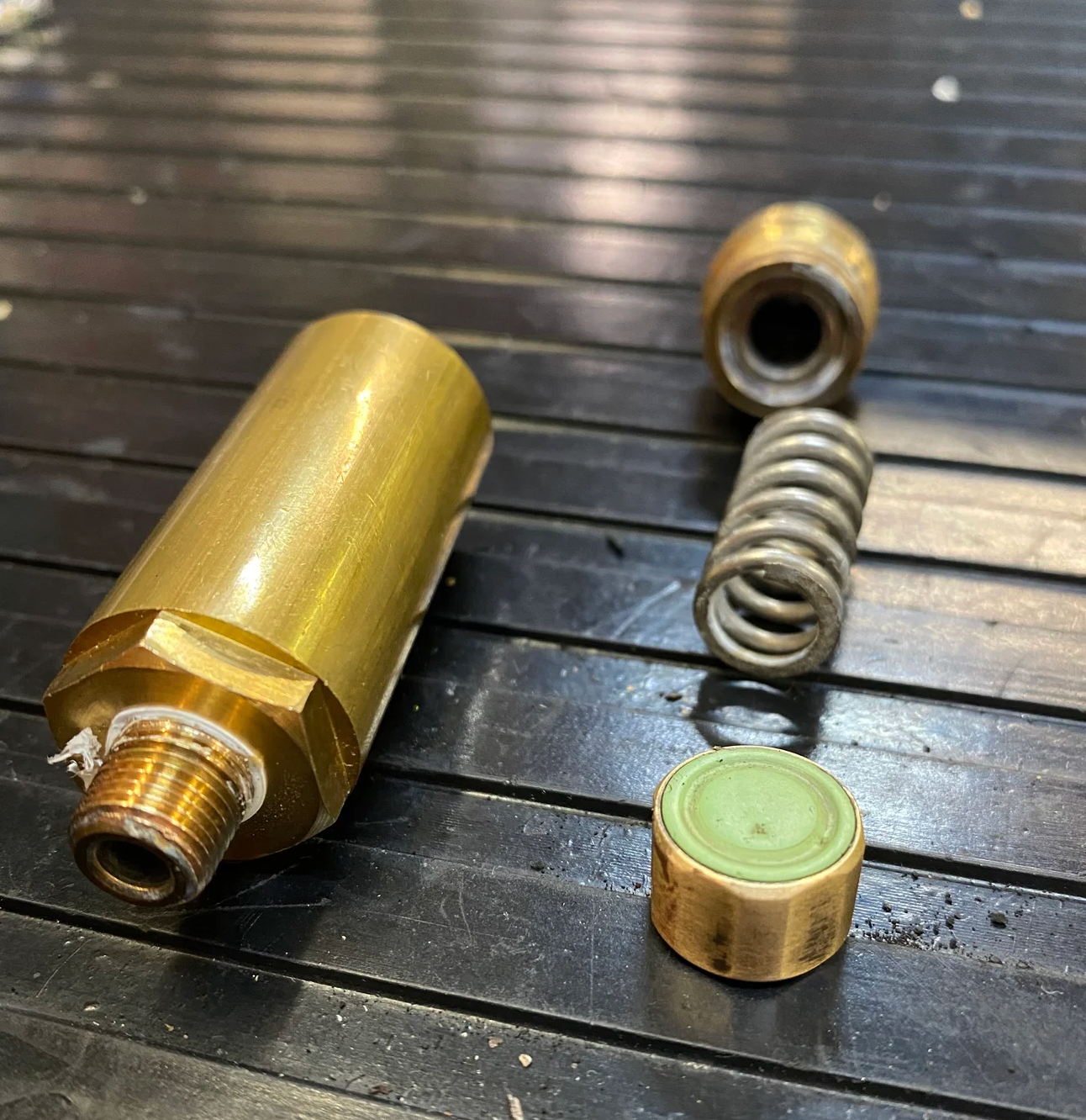

The expansion valve is a spring‑loaded pressure relief valve. Inside the brass body, a spring presses a ball or piston against an exit hole. This spring tension sets the pressure at which the valve will open. When the brew boiler pressure is below the set point, the spring keeps the outlet sealed. As pressure climbs and eventually exceeds the spring force (about 12 bar on many machines), the spring compresses and allows water to pass through the outlet into the drip tray. Once enough water has been vented to drop the pressure below the set point, the spring pushes the piston closed again. Some valves include an adjustment screw to fine‑tune the set pressure; others use a fixed spring calibrated at the factory, as described in the Kaldi product listing.

Technical details

• Set pressure – Most commercial machines set the expansion valve to begin venting between 11 and 12 bar. This is slightly higher than the brew pressure (typically 9–10 bar) because the valve is intended to relieve thermal expansion during heating rather than to control extraction. On adjustable valves, turning the screw clockwise compresses the spring and raises the set point; turning it counter‑clockwise lowers the set point. However, some lower‑cost valves cannot be adjusted below ~11 bar and may leak if the spring is too loose.
• Material – A brass body resists corrosion and withstands prolonged exposure to high temperature and water.
• Thread size – Many valves use a G1/8 or ¼ in male thread; always check the manufacturer’s parts diagram before ordering to ensure compatibility.

Where Else It’s Used

• Boilers and hot‑water systems – Municipal water authorities warn that when water heaters are part of a closed plumbing system, there must be a thermal expansion tank or expansion valve to relieve the extra volume; otherwise a water heater can leak or even explode. Thermal expansion valves discharge water to atmosphere and must be plumbed to a drain with an air gap.
• Refrigeration and air‑conditioning – In HVAC systems, a thermostatic expansion valve (TXV) controls the flow of liquid refrigerant into the evaporator based on the outlet temperature and pressure, known as the superheat. The TXV uses a diaphragm, a power element and a setting spring; the valve opens or closes based on the balance between bulb pressure, spring pressure and evaporator pressure.
• Other espresso components – Many espresso machines also include an over‑pressure valve (OPV) on the pump line. The OPV limits the brew pressure to a desired range (often around 9 bar) and uses a similar spring‑loaded mechanism. The expansion valve, by contrast, protects the boiler from thermal expansion and is set at a higher pressure.

When to Replace

Expansion valves are durable, but they do wear out. Manufacturers recommend replacement when:

1. Persistent dripping or leaking – It is normal for a few drops of water to enter the drip tray during warm‑up or after a shot. However, if water drips continuously or pools in the drip tray, the valve may be worn or the spring may have weakened. The Kaldi description notes that regular use causes the original valve to fail, leading to pressure build‑up. Replacing the valve restores the safe 12‑bar limit.
2. Failure to open – If the boiler pressure climbs above 12 bar on the gauge and no water is vented into the drip tray, the valve may be stuck closed. Continuing to heat the machine in this condition risks bursting seals or triggering the main safety valve. Shut down the machine and seek service.
3. Corrosion or mineral build‑up – Hard‑water deposits or corrosion on the valve seat can prevent it from sealing properly. Regular descaling and using a water filter help prolong valve life.
4. Adjustment problems – Some adjustable valves cannot hold a low pressure if the spring is loosened too much, which can cause leaking. If adjustments no longer produce consistent results, replacement is advised.

Scientific Insight

Water expands as temperature increases because the kinetic energy of its molecules increases, forcing them farther apart. The Coweta County Water and Sewerage Authority explains that in a closed system there is no place for the hot water to expand, causing pressure to rise rapidly. A thermal expansion valve is therefore necessary to vent the extra volume and protect the system from damage. In espresso machines, heating water to roughly 200 °F (~93 °C) increases its volume by ~4 %. The brew boiler is relatively small (~0.4–1 L), so the expanding water only amounts to a few millilitres, but this is enough to increase pressure by several bars if not vented. Because the valve is calibrated at approximately 12 bar (about 174 psi), it opens before the main safety valve (often set around 15 bar) and before any seals are overstressed. The spring‑loaded design ensures it reseats automatically once pressure has dropped, making it a reliable and reusable safety device.

FAQs

1. What’s the difference between an expansion valve and an over‑pressure valve (OPV)? The expansion valve relieves pressure caused by thermal expansion in the brew boiler and is set at about 12 bar, while the OPV regulates brew pressure from the pump to around 9–10 bar for consistent extraction. Some machines have both valves; others combine the functions.
2. Why is the expansion valve in the drip tray? Locating the valve over the drip tray allows vented water to drain harmlessly without affecting the shot. The drip‑tray location also makes the valve accessible for adjustment and replacement.
3. Is water dripping from the valve normal? Yes. A small amount of water (often 20–30 ml) during warm‑up or after a shot is normal because water expands ~4 % when heated. Continuous dripping, however, may indicate wear or incorrect adjustment.
4. How do I adjust my valve’s set pressure? If your valve is adjustable, there is typically a screw on the valve body. Turning it clockwise increases the spring tension (raising the set pressure), and turning it counter‑clockwise decreases it. Use a pressure gauge and adjust in small increments; some valves cannot be set below ~11 bar without leaking. Always consult your machine’s service manual.
5. Can I set the expansion valve to 9 bar like the brew pressure? No. The expansion valve is meant to relieve thermal expansion; if set too low it will vent during brewing and reduce the brew pressure. Keep it around 11–12 bar unless the manufacturer specifies otherwise.
6. What causes an expansion valve to fail? Repeated heating cycles fatigue the spring and seat, minerals can accumulate on the valve, and corrosion can erode the brass surfaces. Eventually the valve may stick closed or leak continuously.
7. Can I clean and reuse a valve? Minor mineral build‑up can sometimes be cleaned with descaling solution, but a worn spring or damaged seat cannot be repaired. Replacing the valve is usually the safest option.
8. Does adjusting the valve void my warranty? Many manufacturers seal the expansion valve at the factory and may consider adjustments or modifications a warranty violation. Always check your machine’s documentation or consult an authorised technician before adjusting.
9. What happens if I remove the valve altogether? Without an expansion valve, pressure caused by thermal expansion will have to be relieved by the main safety valve or by leaking through seals. This can shorten the life of gaskets and may trigger the safety valve more often, potentially causing steam bursts or water damage.
10. Why does my machine spike to 12–14 bar during warm‑up? Because the expansion valve is set higher than the brew pressure, the gauge may momentarily show a spike as the water expands. The valve should open briefly and then close once pressure drops below the set point. If the gauge continues climbing or stays high, the valve may need service.
11. Is a brass valve better than stainless steel? Brass offers excellent machinability and thermal conductivity and is common in espresso machine valves. Stainless steel valves exist but are usually more expensive. Either material works when designed to the correct specifications.
12. Do I need to adjust the valve when changing brew recipes? No. Brew recipes affect the pump pressure and OPV settings. The expansion valve only protects against boiler over‑pressure and is independent of dose, grind or brew ratio.
13. Can I replace the valve myself? If you are comfortable working on your machine and have the correct part, you can replace the valve by removing the drip tray, disconnecting the old valve and installing the new one with thread sealant. However, because this is a safety component, many manufacturers recommend having a factory‑trained technician perform the work.
14. How long does an expansion valve last? There is no fixed interval, but many technicians recommend inspecting it annually and replacing it every few years or if there are any signs of leakage or pressure irregularities.
15. What other systems use expansion valves? Hot‑water heaters use thermal expansion valves or expansion tanks to relieve pressure caused by heating water. Refrigeration and air‑conditioning systems use thermostatic expansion valves to meter refrigerant flow. These devices share the same principle: allowing excess pressure or volume to escape to protect the system.

With proper care, the expansion valve will quietly protect your espresso machine for years. When in doubt, consult your machine’s manual or a professional technician—because a few drops in the drip tray are far preferable to a burst boiler.
